Rix High-Pressure Compressors



Orion Group International provides Rix compressors as part of its Filling Station solutions. These highly reliable units are used throughout the gas generation industry to fill containers with gas up to 3,000 psi.



Rix 2PS



RIX 2PS2B-.85 High Pressure Oxygen Compressor is engineered specifically for safe and reliable, oil-free compression of oxygen, nitrogen and other clean, dry gases.



This compressor will fill up to 12 K-cylinders (6.1 m3) per day at 2,200 psi. Orion frequently includes this compressor with its OGI-100, OGI-200, and OGI-300 oxygen generation systems to fill cylinders for back-up purposes and for use at other locations. It runs a 7/24 continuous duty cycle.





Rix 2V3



A more powerful compressor than the 2PS, this compressor is commonly included with OGI-500 through OGI-750 systems to provide cylinder filling station capabilities at 2,500 psi or optionally 3,000 psi. RIX 2V3B High Pressure Oxygen Compressor is engineered specifically for safe and reliable gas compression of oxygen, nitrogen and other dry inert gases and will fill up to sixty K-cylinders at 2,500 PSI oxygen cylinders in a 24-hour period. It is designed to run continuously, 7/24.

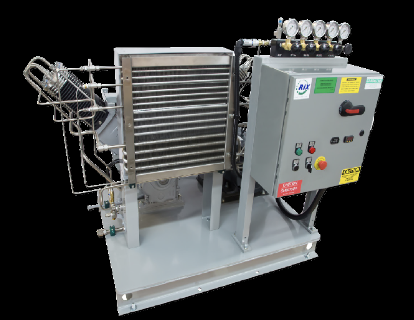

Rix 2V4



This compressor is recommended to for a high-volume filling station as part of large oxygen or nitrogen generation systems.



The RIX 4V4B-6.1 High Pressure Oxygen Compressors incorporates a safe, reliable design developed for industrial and military compressor applications. 4V4B-6.1 High Pressure Oxygen Compressors are designed to provide a maximum discharge pressure of 3,000 PSIG /207 BARG for oxygen, nitrogen and other inert dry gasses. The 4V4B-6.1 High Pressure Oxygen Compressor will fill up to one hundred K-cylinders at up to 3,000 PSI in a 24-hour period.
